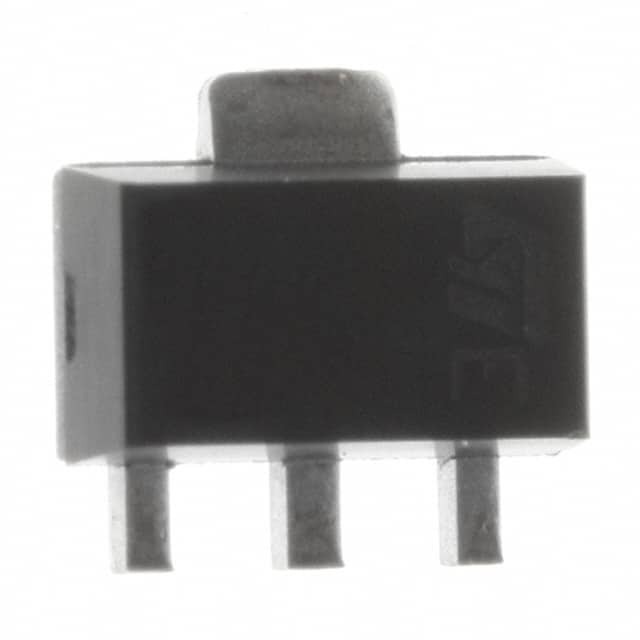

PD84001

SKU: 119999

Manufacturer: STMicroelectronics

Trans RF MOSFET N-CH 18V 1.5A 4-Pin(3+Tab) SOT-89 T/R

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Process Technology	LDMOS
Maximum Drain Source Voltage (V)	18
Maximum Gate Source Voltage (V)	15
Maximum VSWR	20(Min)
Maximum Continuous Drain Current (A)	1.5
Typical Input Capacitance @ Vds (pF)	14.7@7V
Typical Reverse Transfer Capacitance @ Vds (pF)	1.3@7V
Typical Output Capacitance @ Vds (pF)	13.3@7V
Maximum Power Dissipation (mW)	6000
Output Power (W)	31(Typ)
Typical Power Gain (dB)	15
Maximum Frequency (MHz)	1000
Typical Drain Efficiency (%)	60
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT-89
Original Package	SOT-89
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.6(Max)
PCB changed	3
Tab	Tab
