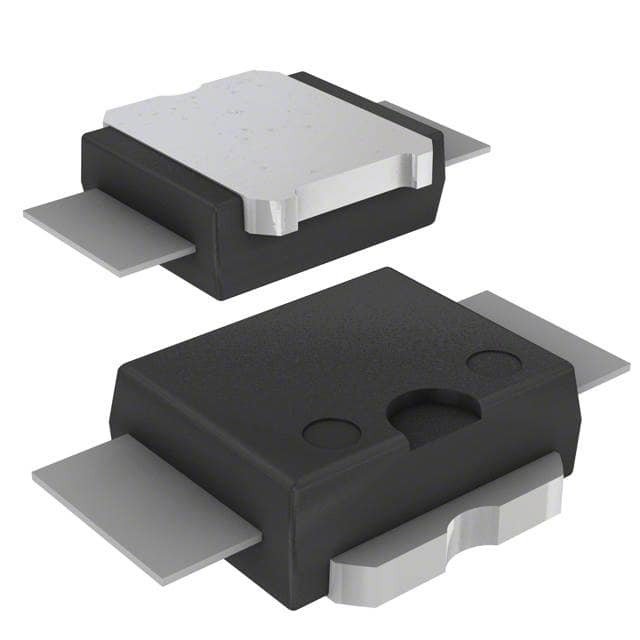

PD57006S-E

SKU: 84580

Manufacturer: STMicroelectronics

Trans RF FET N-CH 65V 1A 3-Pin PowerSO-10RF (Straight lead) Tube

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Process Technology	LDMOS
Maximum Drain Source Voltage (V)	65
Maximum Gate Source Voltage (V)	±20
Maximum VSWR	10(Min)
Maximum Continuous Drain Current (A)	1
Typical Input Capacitance @ Vds (pF)	27@28V
Typical Reverse Transfer Capacitance @ Vds (pF)	0.9@28V
Typical Output Capacitance @ Vds (pF)	14@28V
Typical Forward Transconductance (S)	0.58
Maximum Power Dissipation (mW)	20000
Output Power (W)	6(Min)
Typical Power Gain (dB)	15
Maximum Frequency (MHz)	945
Typical Drain Efficiency (%)	50
Operating Temperature-Min	-65
Operating Temperature-Max	165
Packing Method	Tube
Pin Count	3
Standard Package Method	PowerSO-10RF (Straight lead)
Original Package	PowerSO-10RF (Straight lead)
Terminal Form	Surface Mount
Package Height	3.5
Package Length	9.5
Package Width	9.4
PCB changed	3
