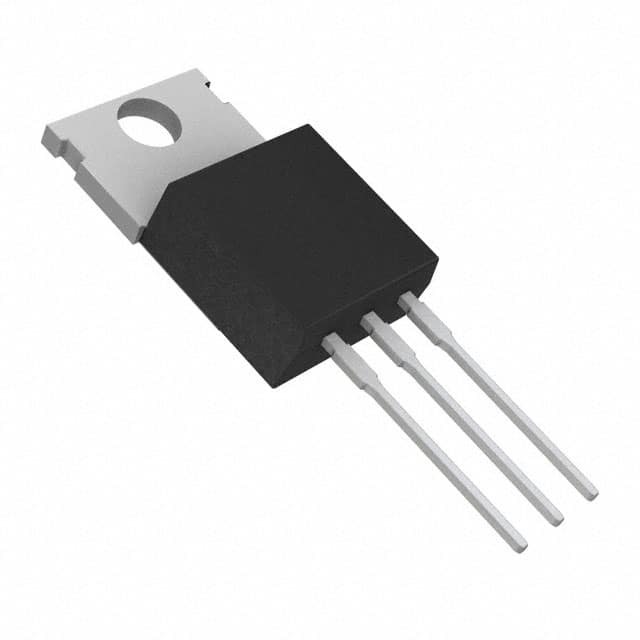

MJE2955T

SKU: 34791

Manufacturer: STMicroelectronics

Trans GP BJT PNP 60V 10A 75000mW 3-Pin(3+Tab) TO-220AB Tube

4610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	70
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	1.1@0.4A@4A
Maximum DC Collector Current (A)	10
Maximum Collector Cut-Off Current (nA)	1000000
Minimum DC Current Gain	20@4A@4V
Maximum Power Dissipation (mW)	75000
Maximum Transition Frequency (MHz)	2(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
