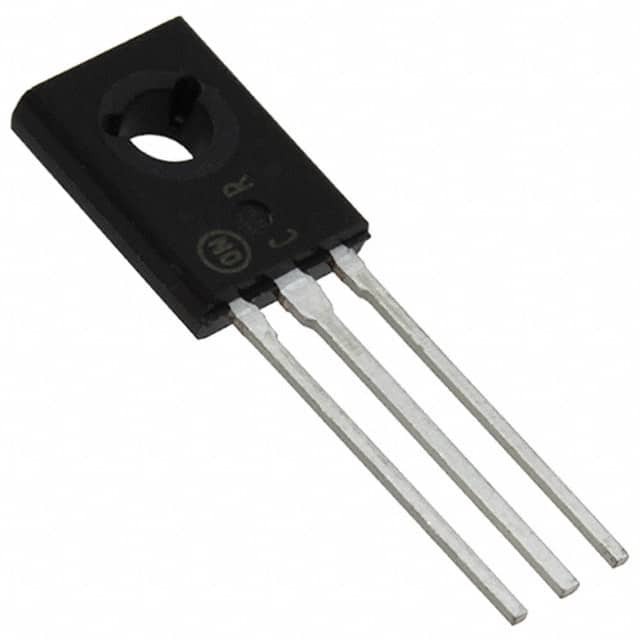

MJE243

SKU: 49054

Manufacturer: onsemi

Trans GP BJT NPN 100V 4A 15000mW 3-Pin(3+Tab) TO-225 Box

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.8@200mA@2A
Maximum Collector-Emitter Saturation Voltage (V)	0.3@50mA@500mA
Maximum DC Collector Current (A)	4
Minimum DC Current Gain	15@1A@1V
Maximum Power Dissipation (mW)	15000
Maximum Transition Frequency (MHz)	40(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Box
Original Package	TO-225
Pin Count	3
Terminal Form	Through Hole
Package Height	11.1(Max)
Package Length	7.8(Max)
Package Width	3(Max)
PCB changed	3
Tab	Tab
