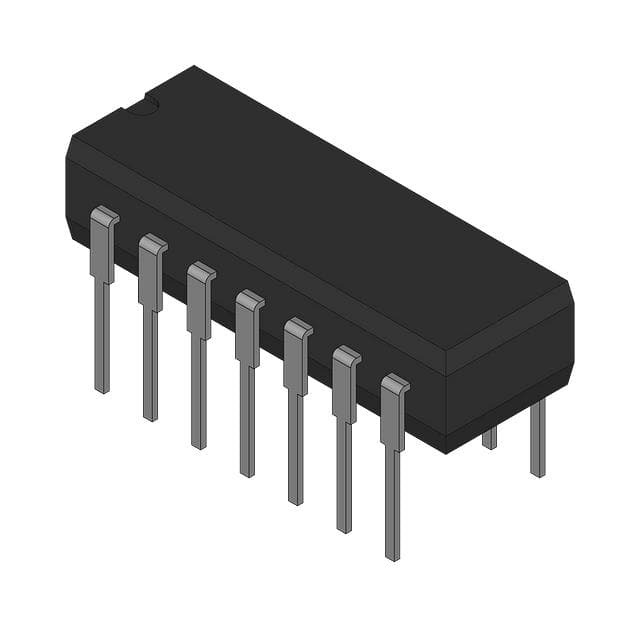

LM319N

SKU: 139734

Manufacturer: STMicroelectronics

Comparator Dual ±15V/30V 14-Pin PDIP Tube

1450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	High Speed Comparator
Number of Channels per Chip	2
Rail to Rail	No
Typical Response Time (us)	0.08
Typical Response Time Range (us)	0.05 to 0.5
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±15
Maximum Input Offset Voltage (mV)	8@±15V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Typical Voltage Gain (dB)	92.04
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	1@±15V
Maximum Supply Current (mA)	4.3(Typ)@5V
Typical Output Current (mA)	25(Max)
Maximum Power Dissipation (mW)	1500
Power Supply Type	Single
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Standard Package Method	DIP
Original Package	PDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	5.1(Max) - 0.51(Min)
Package Length	20(Max)
Package Width	7.1(Max)
PCB changed	14
