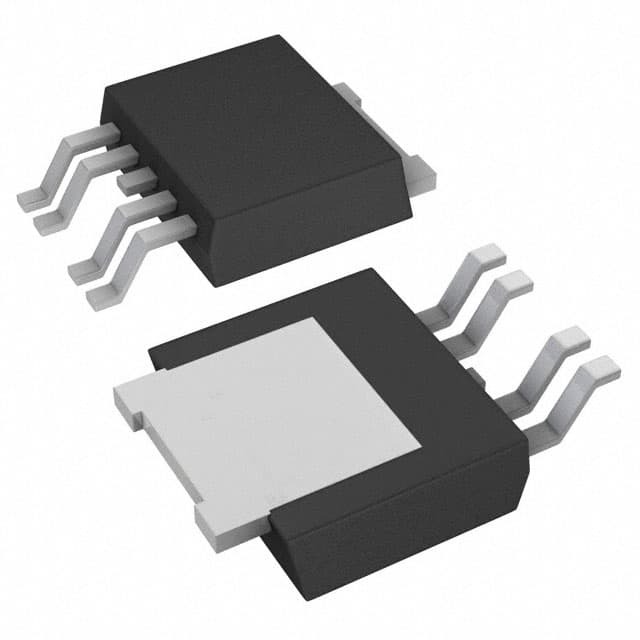

LDFPT-TR

SKU: 118286

Manufacturer: STMicroelectronics

LDO Regulator Pos 0.8V to 12V 1A 5-Pin(4+Tab) PPAK T/R

1450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	0.8 to 12
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.5@1A
Reference Voltage (V)	0.8(Typ)
Line Regulation	0.01%/V(Typ)
Load Regulation	0.2%/A(Typ)
Maximum Quiescent Current (mA)	0.8
Junction to Ambient	100°C/W
Junction to Case	8°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	PPAK
Pin Count	5
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	6.6(Max)
Package Width	6.2(Max)
PCB changed	4
Tab	Tab
