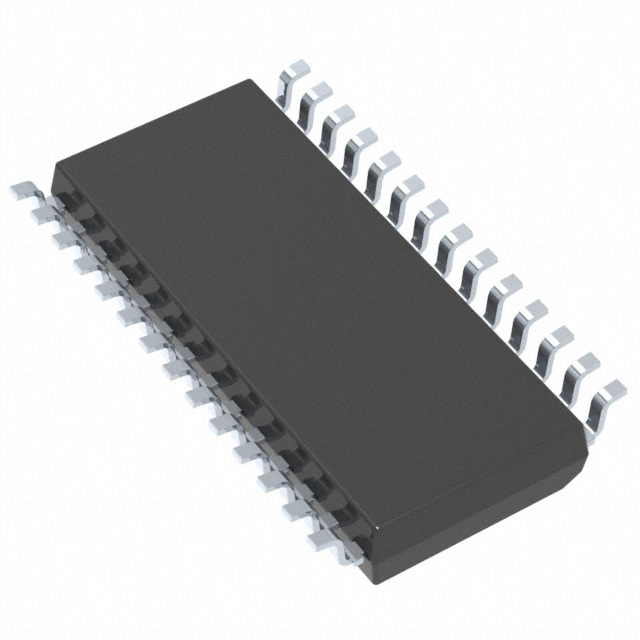

L9848

SKU: 132476

Manufacturer: STMicroelectronics

Driver 0.35A 8-OUT High and Low Side Non-Inv Automotive 28-Pin SO Tube

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	8
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	8
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	30
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (mA)	6
Typical Input Low Threshold Voltage (V)	0.8(Min)
Typical Input High Threshold Voltage (V)	2(Max)
Peak Output Current (A)	0.35
Operating Temperature-Min	-40
Operating Temperature-Max	150
Special Features	Current Limit
Maximum Turn-On Delay Time (ns)	20000
Maximum Turn-Off Delay Time (ns)	100000
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SO
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
