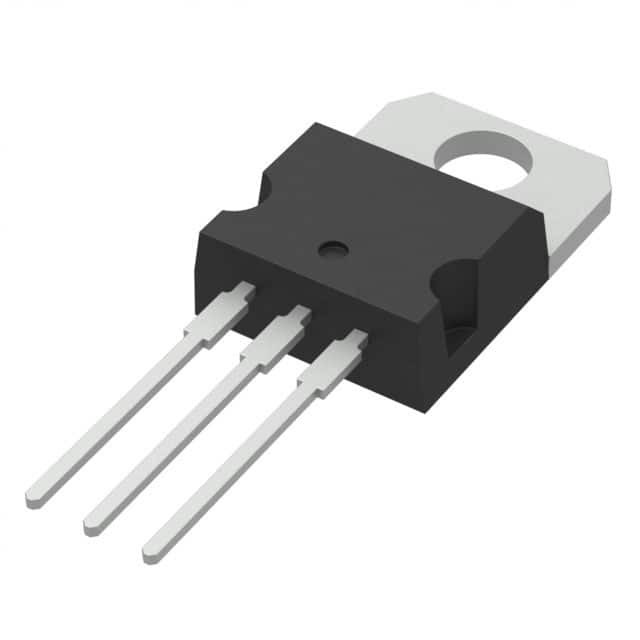

L7815CV-DG

SKU: 26216

Manufacturer: STMicroelectronics

Standard Regulator Pos 15V 1.5A 3-Pin(3+Tab) TO-220AB Tube

187010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	15
Maximum Output Current (A)	1.5
Maximum Input Voltage (V)	35
Line Regulation	300mV
Load Regulation	300mV
Maximum Quiescent Current (mA)	8
Junction to Ambient	50°C/W
Junction to Case	5°C/W
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
