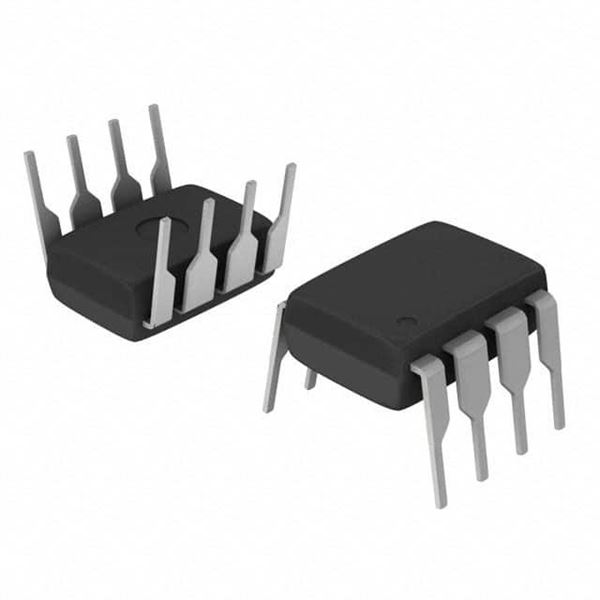

L6384

SKU: 19233

Manufacturer: STMicroelectronics

Driver 600V 0.65A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin Mini-PDIP Tube

27330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	70(Typ)
Maximum Fall Time (ns)	30(Typ)
Maximum Operating Frequency (kHz)	400
Maximum Propagation Delay Time (ns)	300
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	8
Typical Operating Supply Voltage (V)	14.4
Operating Supply Voltage-Max (V)	16.6
Maximum Supply Current (mA)	25
Typical Input Low Threshold Voltage (V)	1.5(Max)
Typical Input High Threshold Voltage (V)	3.6(Min)
Reference Voltage (V)	600(Max)
Peak Output Current (A)	0.65(Typ)
Maximum Power Dissipation (mW)	750
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Shutdown
Packing Method	Tube
Original Package	Mini-PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.32
Package Length	10.92(Max)
Package Width	6.6(Max)
