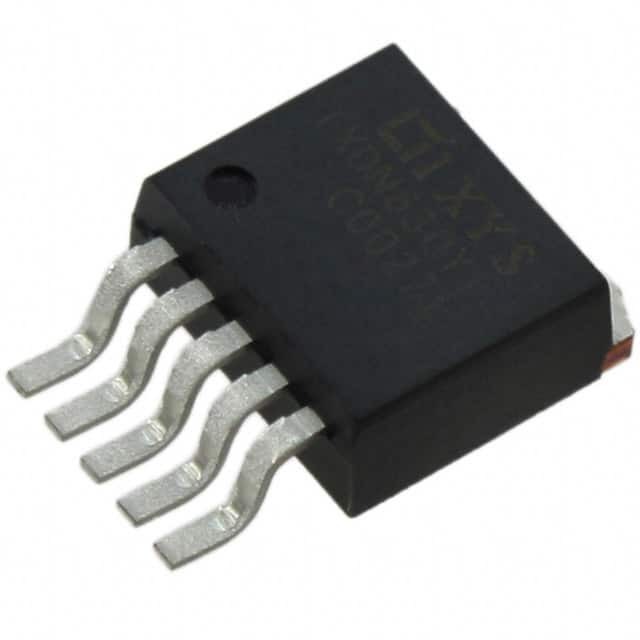

IXDN630YI

SKU: 136617

Manufacturer: IXYS

Driver 30A 1-OUT Low Side Non-Inv 6-Pin(5+Tab) TO-263 Tube

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	20
Maximum Fall Time (ns)	18
Maximum Propagation Delay Time (ns)	65
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	35
Maximum Supply Current (mA)	4
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	3.5(Min)
Peak Output Current (A)	30
Output Resistance (Ohm)	0.16
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Special Features	Under Voltage Lockout
Packing Method	Tube
Original Package	TO-263
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.8(Max)
Package Length	10.3(Max)
Package Width	9.5(Max)
PCB changed	5
Tab	Tab
