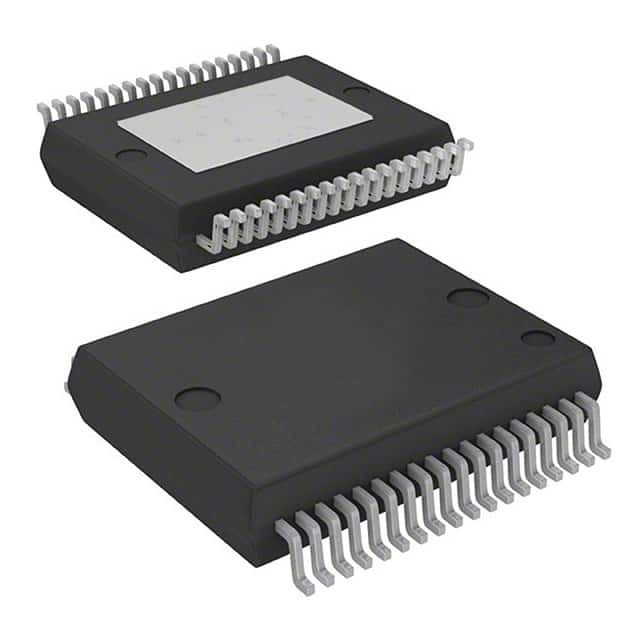

L5963D-EHT

SKU: 19232

Manufacturer: STMicroelectronics

Conv DC-DC 3.5V to 26V Synchronous Step Down Dual-Out 1V 3A Automotive 36-Pin PowerSSO EP T/R

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	250 to 2000
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	1(Min)
Maximum Output Current (A)	3
Minimum Input Voltage (V)	3.5
Maximum Input Voltage (V)	26
Typical Quiescent Current (uA)	23
Line Regulation	1mV(Typ)
Load Regulation	1mV(Typ)
Efficiency (%)	93(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	PowerSSO EP
Pin Count	36
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
PCB changed	36
