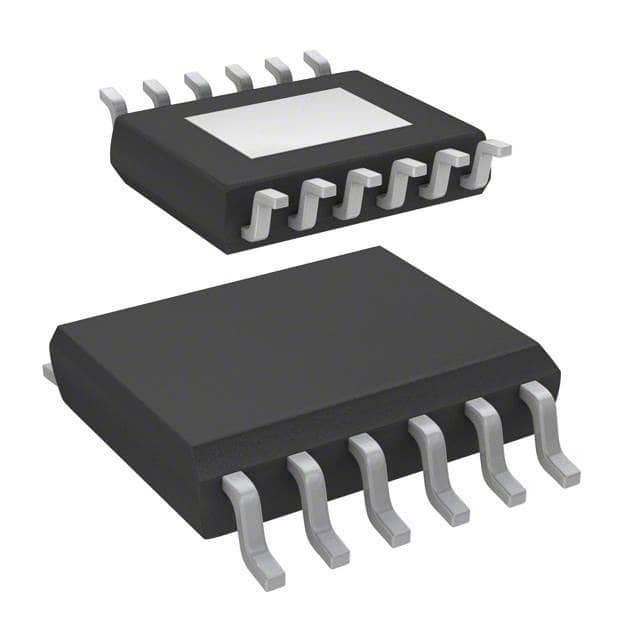

L5150CJ

SKU: 108174

Manufacturer: STMicroelectronics

LDO Regulator Pos 5V 0.15A Automotive 12-Pin PowerSSO EP Tube

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	5.6
Maximum Input Voltage (V)	31
Maximum Dropout Voltage @ Current (V)	0.5@150mA
Reference Voltage (V)	2.5(Typ)
Line Regulation	40mV
Load Regulation	40mV
Junction to Ambient	52K/W
Junction to Case	8K/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PowerSSO EP
Pin Count	12
Standard Package Method	PowerSSO
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	12
