L4925PD

SKU: 19231

Manufacturer: STMicroelectronics

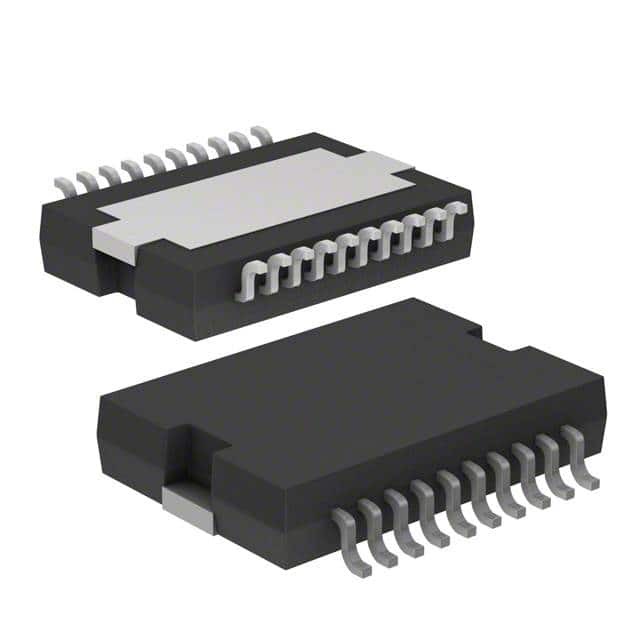

LDO Regulator Pos 5V 0.5A Automotive 20-Pin PowerSO Tube

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	28
Maximum Dropout Voltage @ Current (V)	0.3@100mA
Reference Voltage (V)	1.23
Line Regulation	10mV
Load Regulation	50mV
Maximum Quiescent Current (mA)	0.36
Junction to Ambient	60°C/W
Junction to Case	3.5°C/W
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	PowerSO
Pin Count	20
Standard Package Method	PowerSO
Terminal Form	Surface Mount
Package Height	3.3(Max)
Package Length	16(Max)
Package Width	11.1(Max)
