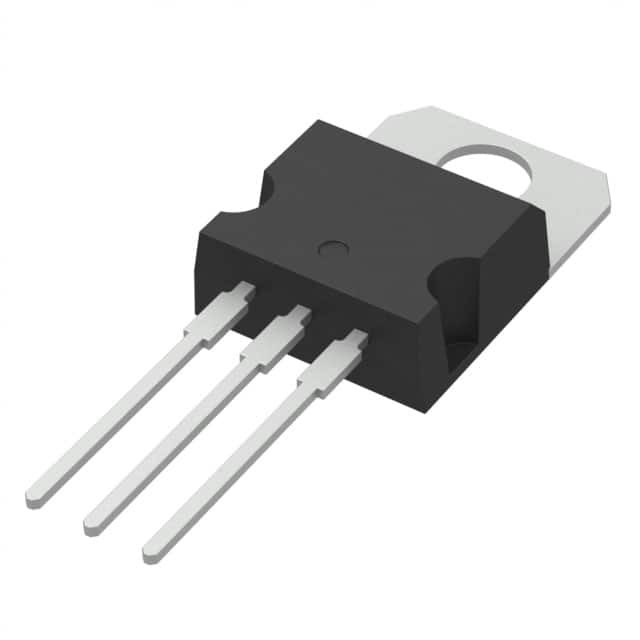

IRF730

SKU: 47462

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB Tube

9540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	400
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	5.5
Maximum Drain Source Resistance (mOhm)	1000@10V
Typical Gate Charge @ Vgs (nC)	18@10V
Typical Gate Charge @ 10V (nC)	18
Typical Input Capacitance @ Vds (pF)	530@25V
Maximum Power Dissipation (mW)	100000
Typical Rise Time (ns)	11
Typical Turn-Off Delay Time (ns)	15
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
