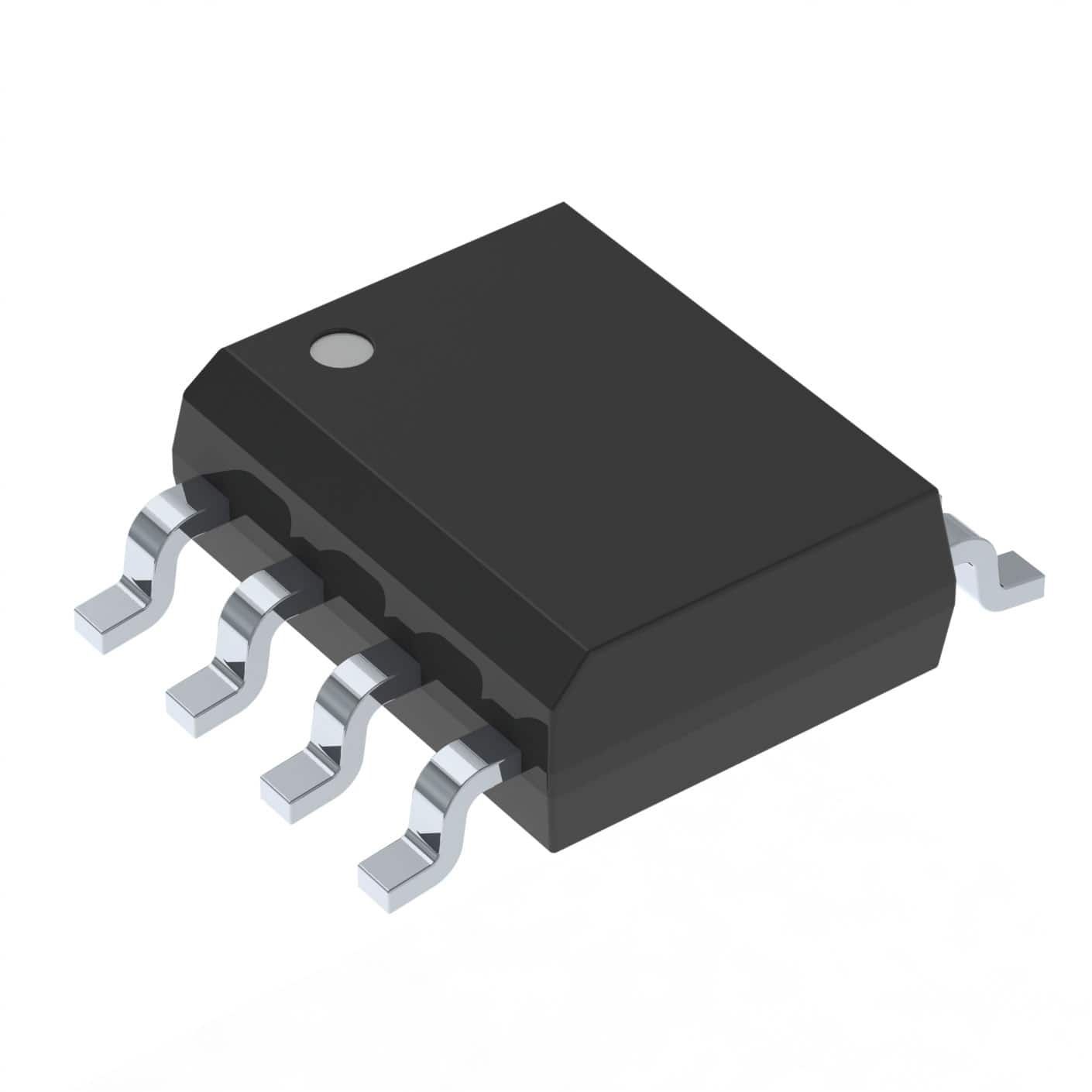

IRF7220

SKU: 19088

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH Si 14V 11A 8-Pin SOIC

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	14
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	0.6(Min)
Maximum Continuous Drain Current (A)	11
Maximum Drain Source Resistance (mOhm)	12@4.5V
Typical Gate Charge @ Vgs (nC)	84@5V
Typical Input Capacitance @ Vds (pF)	8075@10V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	1040
Typical Rise Time (ns)	420
Typical Turn-Off Delay Time (ns)	140
Typical Turn-On Delay Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOIC
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
