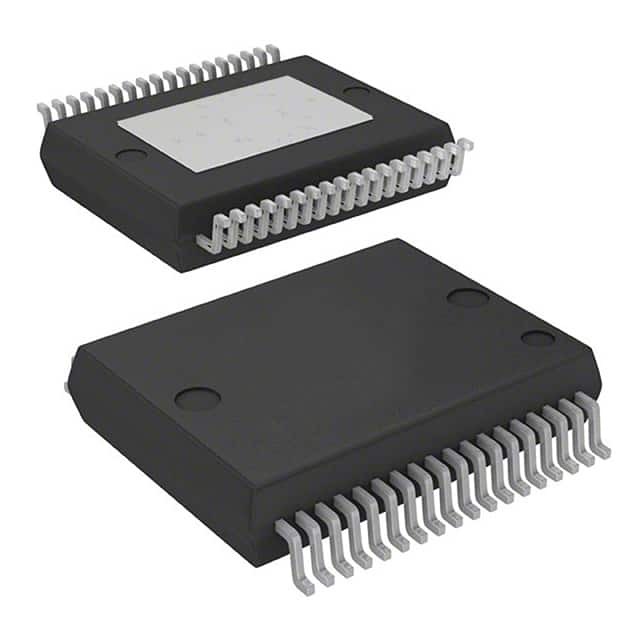

FDA803D-EHT

SKU: 96570

Manufacturer: STMicroelectronics

Audio Amp Speaker 1-CH Mono 55W Class-D Automotive 36-Pin PowerSSO EP T/R

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Function	Speaker
Amplifier Type	Class-D
THDN	0.01%@4Ohm@1W
Output Signal Type	Differential
Output Type	1-Channel Mono
Output Voltage	3.3V ~ 18V
Maximum Input Offset Voltage (mV)	10@14.4V
Minimum Single Supply Voltage (V)	3.3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	18
Minimum Load Resistance (Ohm)	2
Power Supply Type	Single
Maximum Output Power x Channels @ Load (W)	80x1@2Ohm
Typical Output Power x Channels @ Load (W)	55x1@2Ohm
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	PowerSSO EP
Pin Count	36
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
