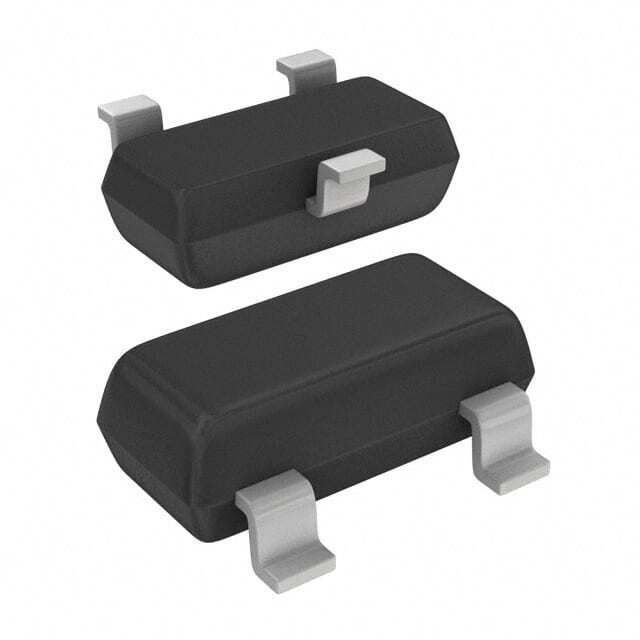

ESDCAN06-2BWY

SKU: 139172

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Bi-Dir 35V Automotive 3-Pin SOT-323 T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Dual
Direction Type	Bi-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	35
Minimum Breakdown Voltage (V)	38
Maximum Breakdown Voltage (V)	42.2
Maximum Clamping Voltage (V)	59
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	170
Capacitance Value (pF)	15
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2
Package Width	1.25
