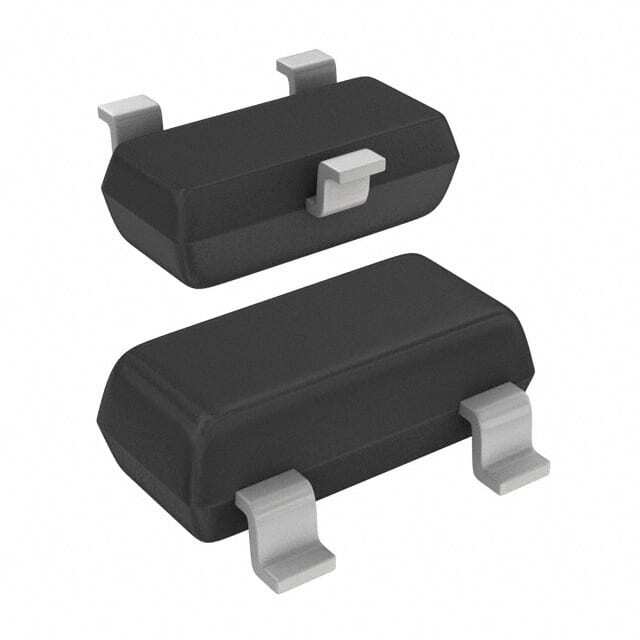

ESDCAN03-2BWY

SKU: 82406

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Bi-Dir 24V Automotive 3-Pin SOT-323 T/R

3680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Dual
Direction Type	Bi-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	24
Minimum Breakdown Voltage (V)	26.5
Maximum Breakdown Voltage (V)	29.7
Maximum Clamping Voltage (V)	41
Maximum Peak Pulse Current (A)	3.7
Maximum Leakage Current (uA)	0.01
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	170
Capacitance Value (pF)	3.5
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2
Package Width	1.25
