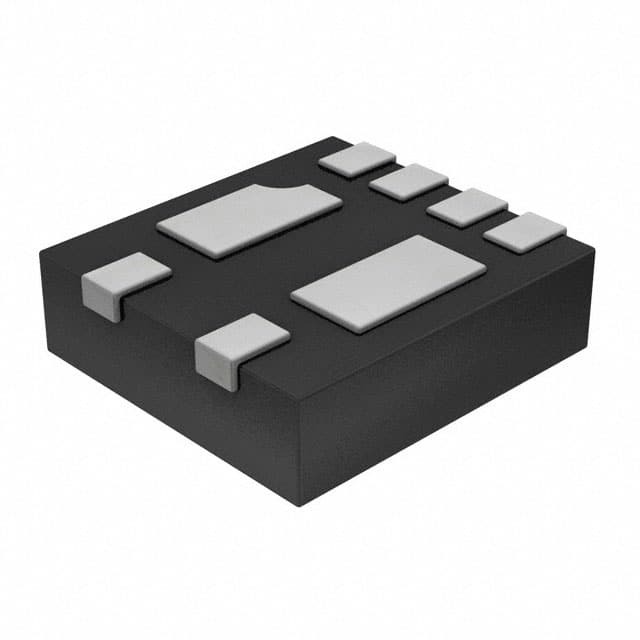

ESDA17P100-1U2M

SKU: 153326

Manufacturer: STMicroelectronics

ESD Suppressor Diode TVS Uni-Dir 15V 6-Pin UQFN EP T/R

4240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	15
Minimum Breakdown Voltage (V)	15.7
Maximum Breakdown Voltage (V)	17.7
Maximum Clamping Voltage (V)	30
Maximum Peak Pulse Current (A)	160
Maximum Leakage Current (uA)	0.2
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	4800
Capacitance Value (pF)	1200(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	UQFN EP
Pin Count	6
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.53
Package Length	1.8
Package Width	2
PCB changed	6
