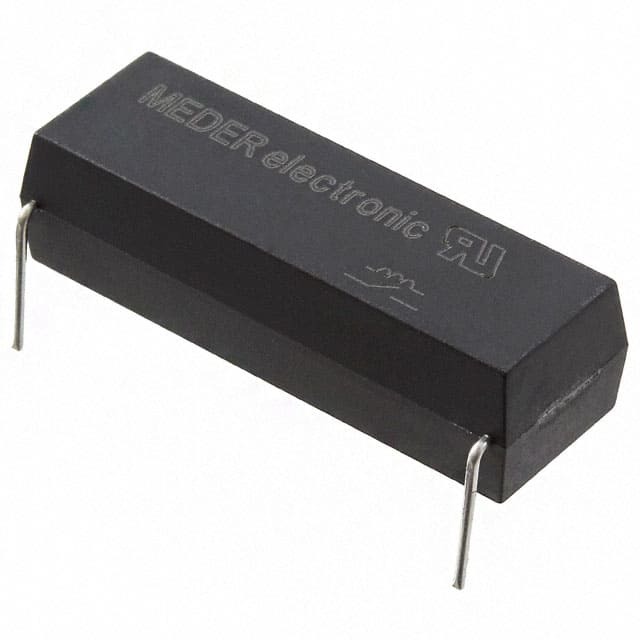

KT12-1A-40L-THT

SKU: 122438

Manufacturer: Standex Electronics, Inc

Reed Relay 12VDC 475Ohm 1A SPST-NO(30.2x13.2x8.7)mm THT Dry Automotive

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
Automotive	Yes
PPAP	Unknown
Type	Dry
Contact Arrangement	SPST-NO
DC Coil Voltage (V)	12
Coil Current (mA)	25.3
Coil Resistance (Ohm)	475
Maximum Contact Resistance (mOhm)	150
Insulation Resistance (Ohm)	10G(Min)
Maximum Pick-Up Voltage	9VDC
Maximum AC Switching Voltage (V)	1K
Maximum DC Switching Voltage (V)	1K
Maximum Switching Current (A)	1
Minimum Dropout Voltage	1VDC
Maximum Carry Current (A)	2.5
Isolation Across Contacts	3KVDC(Min)
Isolation Across Coil and Contacts	7KVDC(Min)
Maximum Switching Power	100W
Operate Time (ms)	1.1
Release Time (ms)	0.1
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Relay Construction	Non-Latching
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Bulk
Length (mm)	30.2
Depth (mm)	13.2
