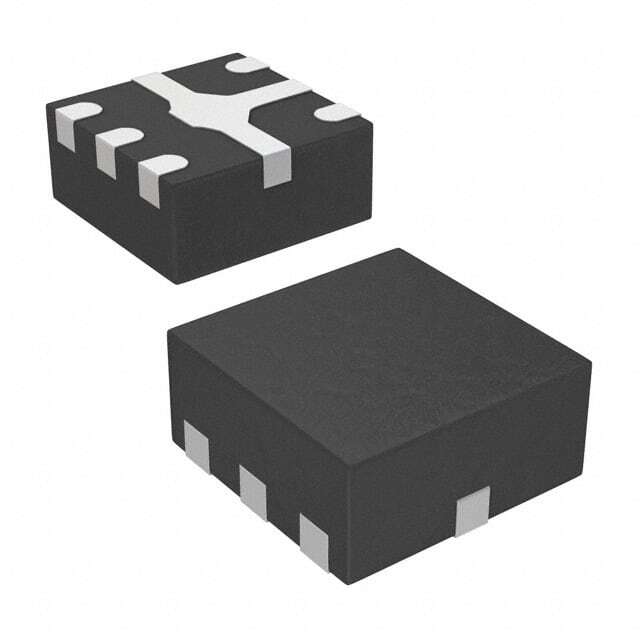

SKY13323-378LF

SKU: 148848

Manufacturer: Skyworks Solutions

RF Switch SPDT 100MHz to 3GHz 24dB Automotive 6-Pin QFN EP T/R

54530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	10
Frequency Band (MHz)	100 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	24
Maximum Insertion Loss (dB)	0.5
Typical Input 1dB Compressed Power (dBm)	27
Technology	pHEMT GaAs
High Control Voltage (V)	1.8 to 5
Typical Supply Current (mA)	0.005
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	6
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.45
Package Length	1
Package Width	1
PCB changed	6
