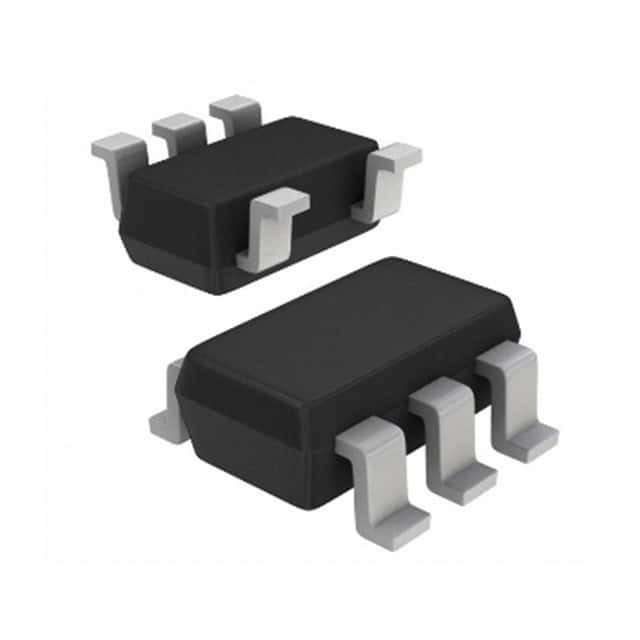

TS1100-25EG5

SKU: 66615

Manufacturer: Silicon Labs

SP Amp Current Sense Amp Single 25V 5-Pin SOT-23 Cut Tape

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	27.96(Typ)
Minimum CMRR Range (dB)	120 to 130
Minimum CMRR (dB)	120
Maximum Input Offset Voltage (mV)	0.1@3.6V
Operating Supply Voltage-Max (V)	25
Maximum Supply Voltage Range (V)	20 to 30
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	25
Maximum Supply Current (mA)	0.001@25V
Maximum Power Dissipation (mW)	312
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Packing Method	Cut Tape
Power Supply Type	Single
Pin Count	5
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.75(Max)
PCB changed	5
