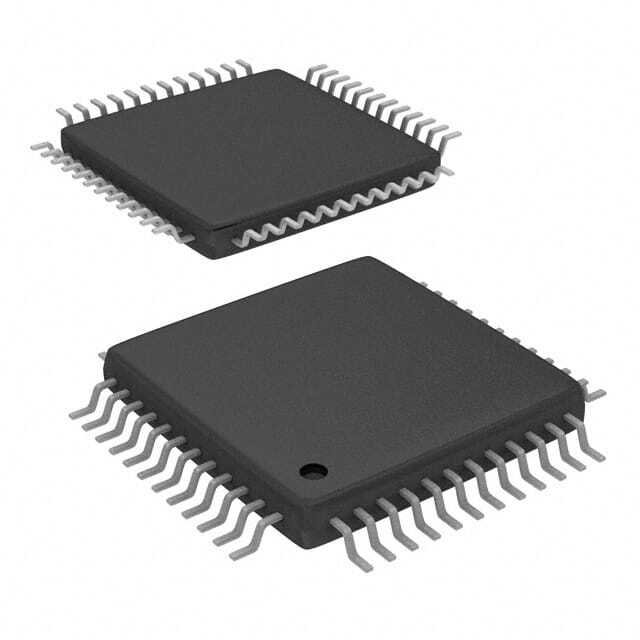

EFM32TG822F32-QFP48

SKU: 65750

Manufacturer: Silicon Labs

ARM Cortex-32-bit 32 MHz 32 kB LCD AES MCU

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	EFM32
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	4KB
Programmability	Yes
Interface Type	I2C/UART/USART
Number of I/Os	37
No. of Timers	3
Timers Resolution (bit)	16/16/16
PWM	3
Number of ADCs	Single
ADC Channels	14
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
LCD Segments	160
USART	2
UART	1
USB	0
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.98
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7
Package Width	7
PCB changed	48
