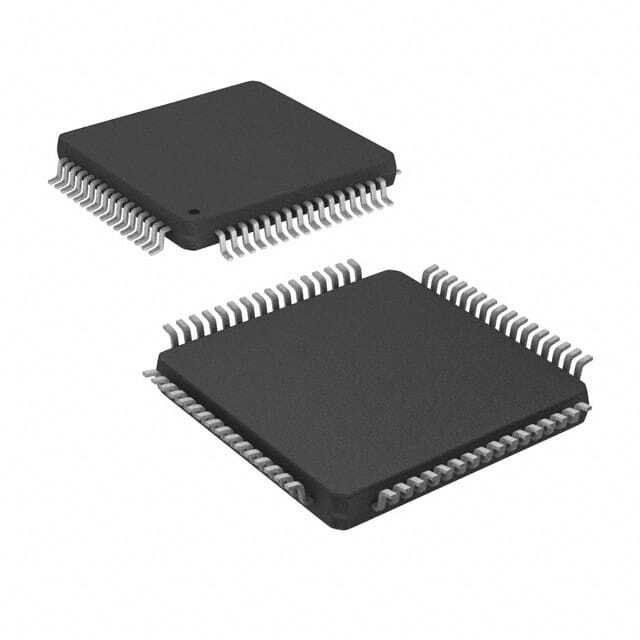

C8051F063-GQR

SKU: 81830

Manufacturer: Silicon Labs

MCU 8-bit 8051 CISC 64KB Flash 3.3V 64-Pin TQFP T/R

3290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Family Name	C8051F06x
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4.25KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Process Technology	CMOS
Interface Type	CAN/I2C/SMBus/SPI/UART
Number of I/Os	24
No. of Timers	5
Timers Resolution (bit)	16/16/16/16/16
PWM	2
Number of ADCs	Dual
ADC Channels	8/8
ADC Resolution (bit)	10/16
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10
Package Width	10
PCB changed	64
