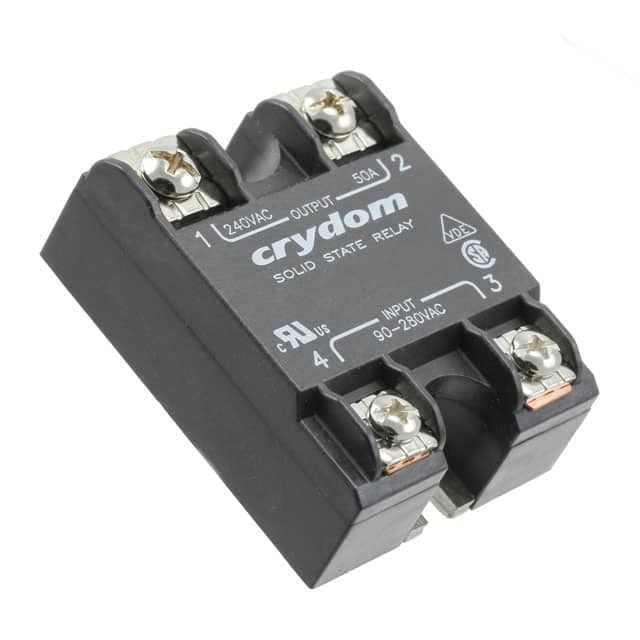

D2440

SKU: 117472

Manufacturer: Sensata Technologies

Solid State Relay 12mA 32V DC-IN 40A 280V AC-OUT 4-Pin

3350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Input Type	DC
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	32
Maximum Input Current (mA)	12
Maximum Output Voltage (V)	280(RMS)
Maximum Output Current (A)	40(RMS)
Output Device	SCR
Output Type	AC
I/O Isolation Voltage (V)	4000(RMS)
Maximum Off-State Leakage Current (uA)	1000(RMS)
Typical Input to Output Capacitance (pF)	8(Max)
Maximum Turn-On Time (ms)	8.33
Maximum Turn-Off Time (ms)	8.33
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	80
Pin Count	4
Terminal Form	Screw
Package Length	44.5
Package Width	57.3
PCB changed	4
