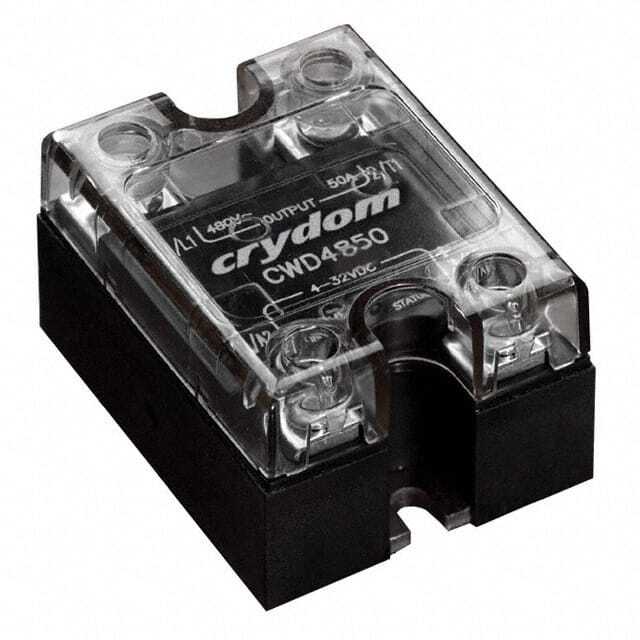

CWD4850 Sensata Technologies

CWD4850

SKU: 11228

Manufacturer: Sensata Technologies

Solid State Relay 15mA 32V DC-IN 50A 660V AC-OUT 4-Pin

Download sample

Request Free Samples

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.80
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	32
Maximum Input Current (mA)	15
Maximum Output Voltage (V)	660(RMS)
Maximum Output Current (A)	50(RMS)
Output Device	SCR
Output Type	AC
I/O Isolation Voltage (V)	4000(RMS)
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	80
Pin Count	4
Terminal Form	Screw
Package Height	24
Package Length	44.5
Package Width	57.3
