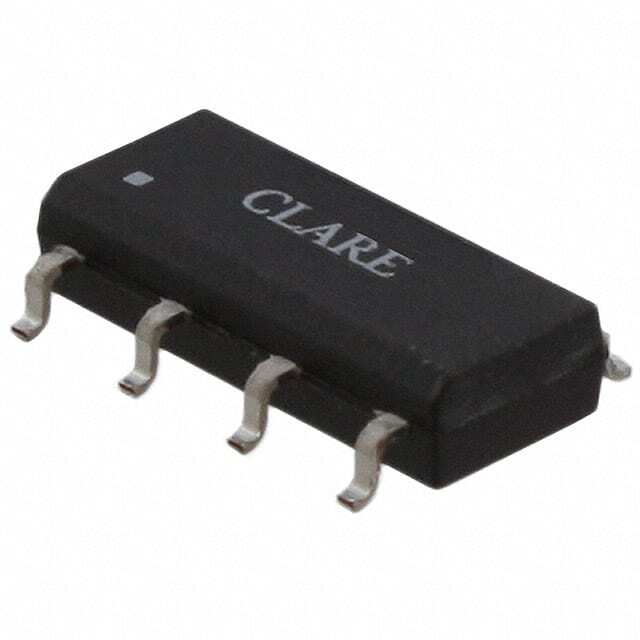

CPC2317N

SKU: 131620

Manufacturer: Littelfuse

Solid State Relay 50mA 1.4V DC-IN 0.12A 60V AC/DC-OUT 8-Pin SOIC Tube

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	1.4
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	60
Maximum Output Current (A)	0.12
Output Device	MOSFET
Output Type	AC
I/O Isolation Voltage (V)	1500(RMS)
Maximum Off-State Leakage Current (uA)	1
Typical Input to Output Capacitance (pF)	1
Maximum Turn-On Time (ms)	3
Maximum Turn-Off Time (ms)	3
Circuit Arrangement	1 Form B
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Original Package	SOIC
Pin Count	8
Terminal Form	Surface Mount
Package Height	2.08(Max)
Package Length	9.34
Package Width	3.81
PCB changed	8
