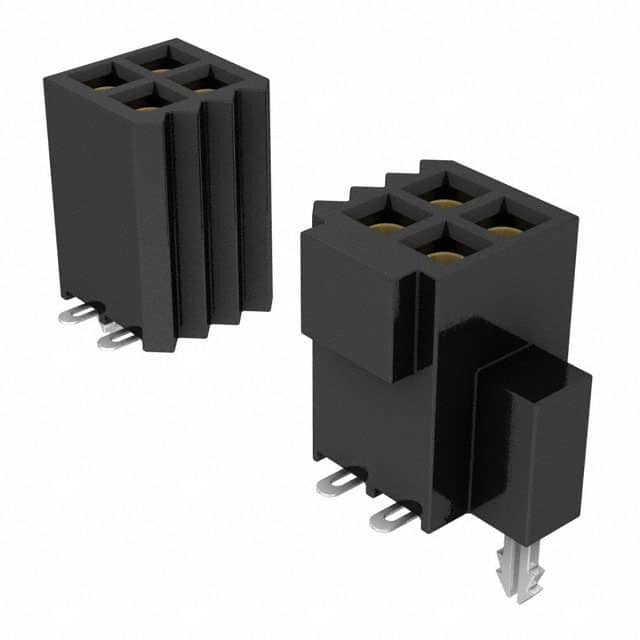

SFM-115-02-S-D-LC

SKU: 120387

Manufacturer: Samtec

Conn Socket Strip SKT 30 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ Tube

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Socket Strip
Gender	SKT
Number of Contacts	30
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Polarization Type	Left Key
Row Spacing (mm)	1.27
Speed Rating (Gbps)	8
Current Rating-Max(A)	3.2/Contact
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	10000
Packing Method	Tube
Length (mm)	22.99
Depth (mm)	4.19
Height (mm)	4.7
Tradename	TIGER EYE™
Contact Plating Thickness	0.76um
