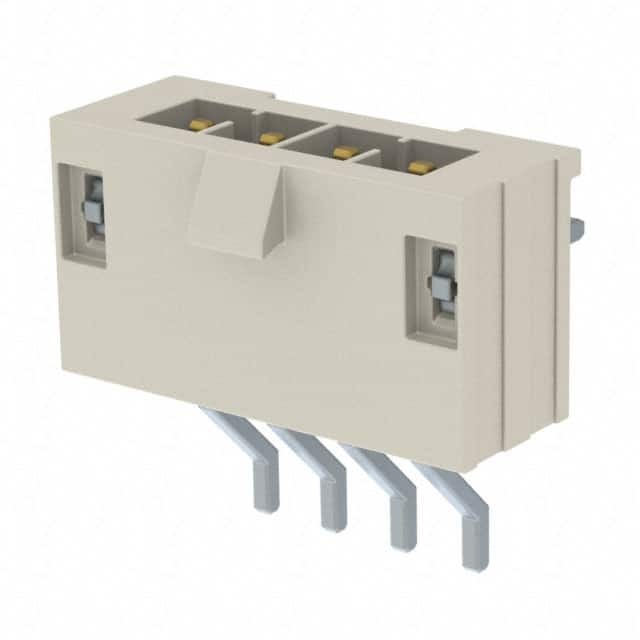

IPL1-104-02-L-SH-K-TR

SKU: 150764

Manufacturer: Samtec

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Side Entry SMD Mini Mate® T/R

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Polarization Type	Center Key
Current Rating-Max(A)	4.8/Contact
Voltage Rating-Max	954VDC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	14.22
Depth (mm)	13.06
Height (mm)	6.61
Tradename	Mini Mate®
