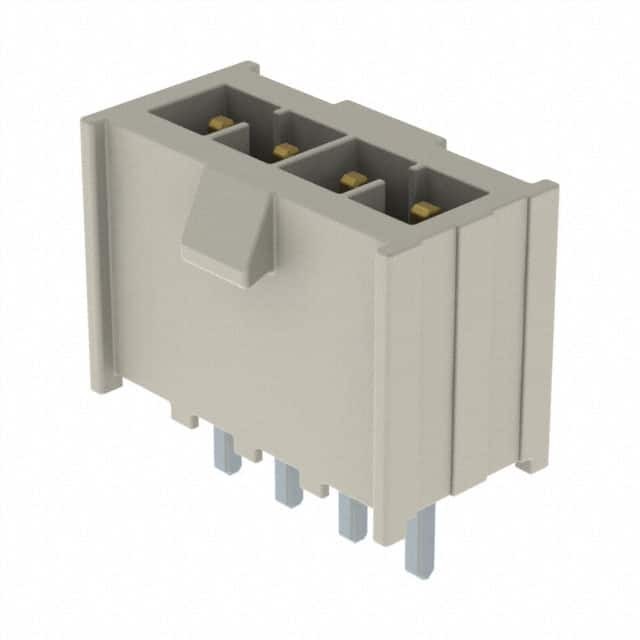

IPL1-104-01-S-S-K

SKU: 16298

Manufacturer: Samtec

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Top Entry Thru-Hole Mini Mate® Tube

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Dual Key
Current Rating-Max(A)	4.8/Contact
Voltage Rating-Max	675VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tube
Length (mm)	11.68
Depth (mm)	6.61
Height (mm)	8.13
Tradename	Mini Mate®
Tail Length (mm)	3.05
