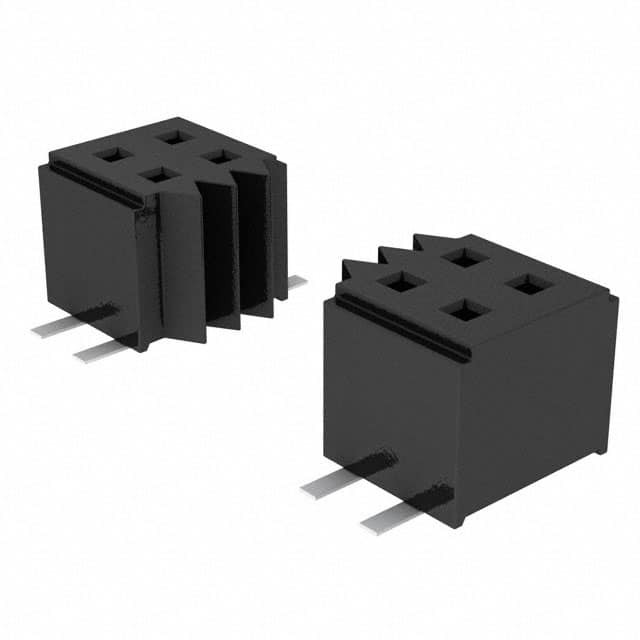

CLM-110-02-F-D-P-TR

SKU: 110240

Manufacturer: Samtec

Conn Micro Socket Strip SKT 20 POS 1mm Solder ST SMD T/R

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Micro Socket Strip
Gender	SKT
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Straight
Row Spacing (mm)	1
Current Rating-Max(A)	2.8/Contact
Voltage Rating-Max	310VAC
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	10.31
Depth (mm)	3.81
Height (mm)	2.26
