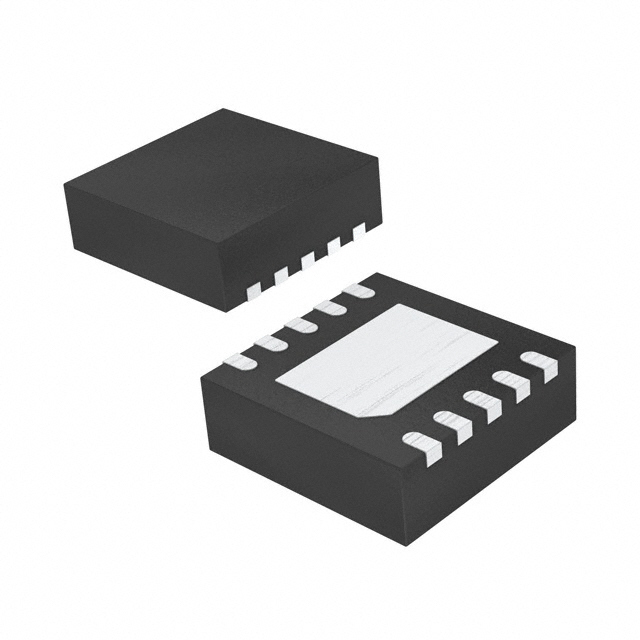

BD67173NUX-E2

SKU: 32227

Manufacturer: ROHM Semiconductor

Motor Driver 5V 10-Pin VSON-X EP T/R

4260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Brushless DC Motor
Control Interface	PWM
Output Voltage (V)	0.25
Maximum Output Current (A)	0.7
Operating Supply Voltage-Min (V)	2.2
Operating Supply Voltage (V)	2.2 to 5.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Operating Current (mA)	6.6
Maximum Power Dissipation (mW)	580
Operating Temperature-Min	-25
Operating Temperature-Max	95
Packing Method	Tape and Reel
Original Package	VSON-X EP
Pin Count	10
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	3
Package Width	3
PCB changed	10
