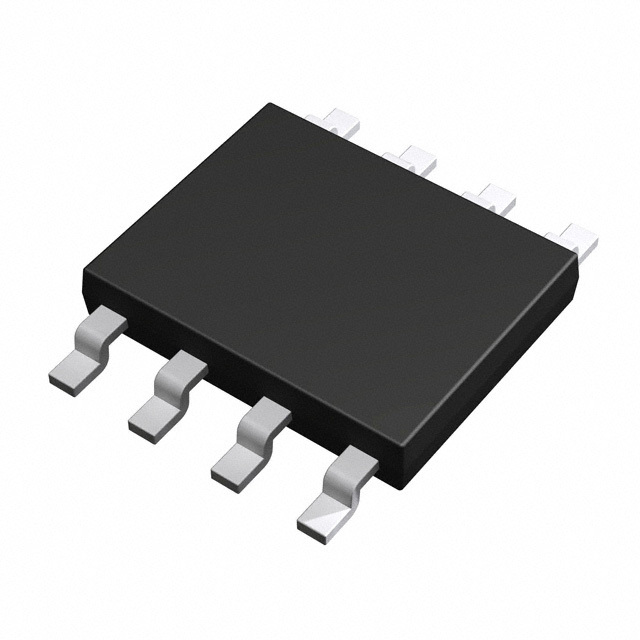

BA3121F-E2

SKU: 117022

Manufacturer: ROHM Semiconductor

SP Amp ISOL Amp Dual 18V Automotive 8-Pin SOP T/R

118080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Unknown
PPAP	Unknown
Type	Isolation Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	2
Rail to Rail	No
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	1.5
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	41
Operating Supply Voltage-Max (V)	18
Maximum Supply Voltage Range (V)	18 to 20
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	18
Maximum Input Resistance (MOhm)	0.066@12V
Maximum Power Dissipation (mW)	450
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Power Supply Type	Single
Original Package	SOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5
Package Length	5
Package Width	4.4
PCB changed	8
