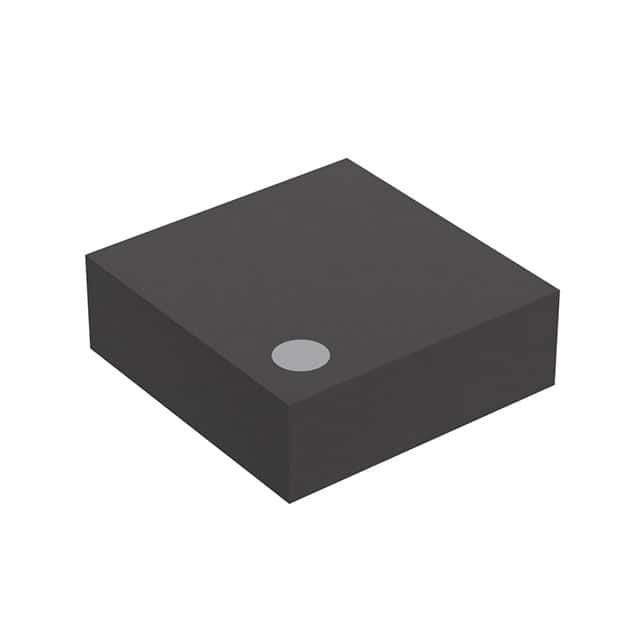

R3118K101C-TR

SKU: 98870

Manufacturer: Ricoh Electronic Devices Company

Processor Supervisor 1V 1 CMOS 6-Pin DFN T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	0.08(Typ)
Output Driver	CMOS
Minimum Reset Threshold Voltage (V)	0.9775
Typical Reset Threshold Voltage (V)	1
Maximum Reset Threshold Voltage (V)	1.0225
Operating Supply Voltage-Min (V)	1
Operating Supply Voltage-Max (V)	6
Maximum Supply Current (uA)	0.48(Typ)
Maximum Power Dissipation (mW)	450
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Type	Voltage Detector
Original Package	DFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.4(Max)
Package Length	1.2
Package Width	1.2
PCB changed	6
