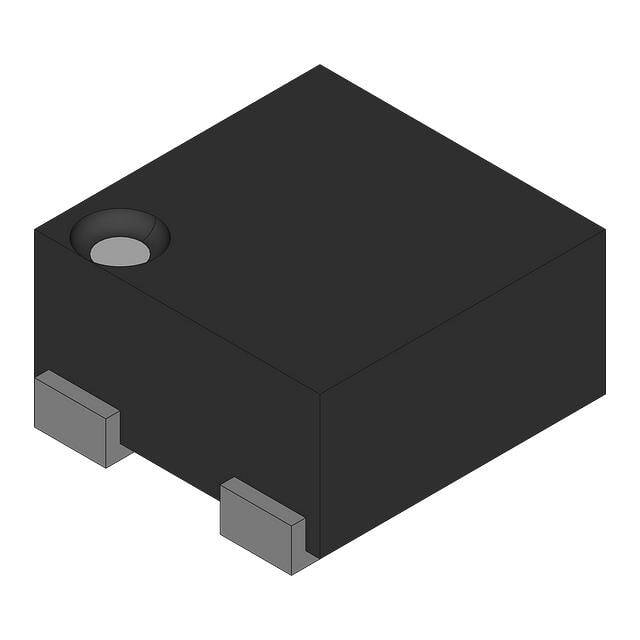

R3117K273C-TR

SKU: 49566

Manufacturer: Ricoh Electronic Devices Company

Processor Supervisor 2.7V 1 CMOS 4-Pin DFN EP T/R

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	0.04(Typ)
Output Driver	CMOS
Minimum Reset Threshold Voltage (V)	2.673
Typical Reset Threshold Voltage (V)	2.7
Maximum Reset Threshold Voltage (V)	2.727
Operating Supply Voltage-Min (V)	1
Operating Supply Voltage-Max (V)	6
Maximum Supply Current (uA)	0.31(Typ)
Maximum Power Dissipation (mW)	400
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Type	Voltage Detector
Original Package	DFN EP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1
Package Width	1
PCB changed	4
