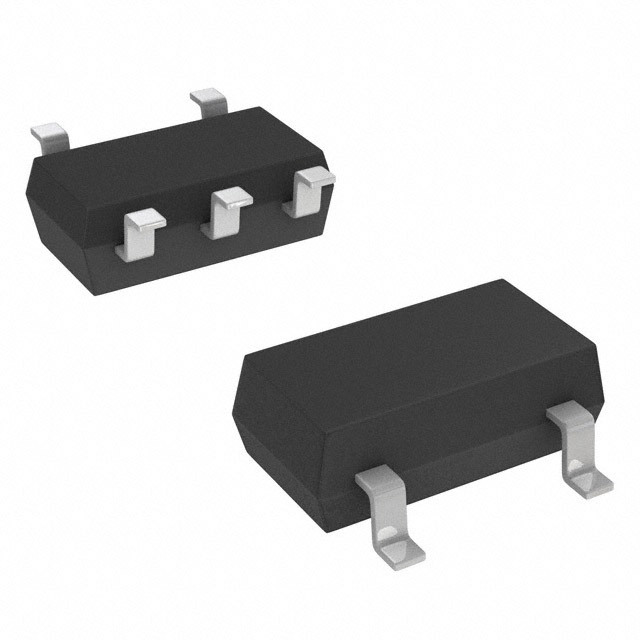

RT9078N-08GJ5

SKU: 108589

Manufacturer: Richtek Technology Corporation

LDO Regulator Pos 0.8V to 5V 0.3A 5-Pin TSOT-23

240170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.8 to 5
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.97@300mA
Reference Voltage (V)	0.816
Line Regulation	0.6%
Load Regulation	1%
Maximum Quiescent Current (mA)	0.004
Maximum Power Dissipation (mW)	430
Junction to Ambient	230.6°C/W
Junction to Case	21.8°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TSOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	3.1(Max)
Package Width	1.8(Max)
PCB changed	5
