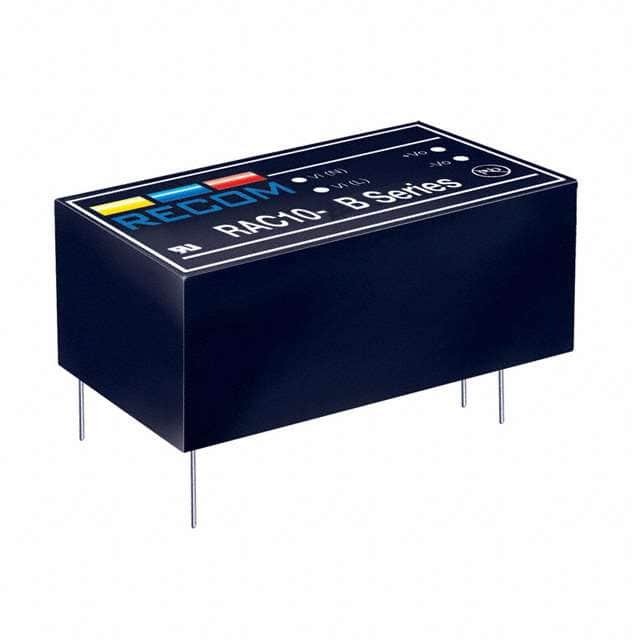

RAC10-12SB RECOM Power

RAC10-12SB

SKU: 94442

Manufacturer: RECOM Power

AC/DC Power Supply Single-OUT 12V 0.833A 10W 4-Pin Box

Download sample

Request Free Samples

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8504.40.95.10
Automotive	No
PPAP	No
Type	Switching
Style	Enclosed
Power Supply Color	Black
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	12
Output Current (A)	0.833
Output Power (W)	10
Minimum AC Input Voltage (V)	90
Maximum AC Input Voltage (V)	264
Minimum DC Input Voltage (V)	120
Maximum DC Input Voltage (V)	370
Minimum Isolation Voltage	3000VAC
Line Regulation	0.3%(Typ)
Load Regulation	0.5%(Typ)
Maximum Input Current (A)	0.22
Input Frequency (Hz)	47 to 440
Tolerance (%)	±2
Efficiency (%)	77(Typ)
Input Connector Type	PC Pins
Output Connector Type	PC Pins
Power Indicator	No
Medical	No
Operating Temperature-Min	-25
Operating Temperature-Max	70
Packing Method	Box
Pin Count	4
Terminal Form	Through Hole
Package Height	23.5
Package Length	52.4
Package Width	27.2
