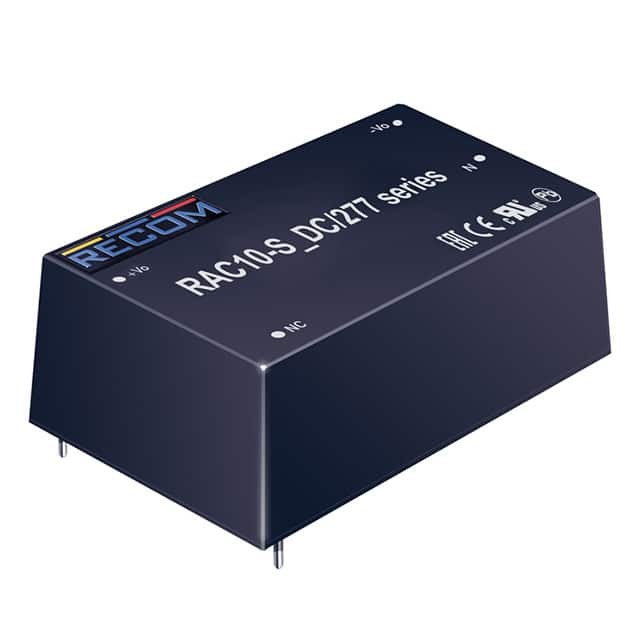

RAC10-05SC/277 RECOM Power

RAC10-05SC/277

SKU: 21065

Manufacturer: RECOM Power

AC/DC Power Supply Single-OUT 5V 2A 10W 4-Pin Tube

Download sample

Request Free Samples

3280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8504.40.95.80
Automotive	No
PPAP	No
Type	Regulated
Style	Encapsulated
Power Supply Color	Black
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	5
Output Current (A)	2
Output Power (W)	10
Minimum AC Input Voltage (V)	80
Maximum AC Input Voltage (V)	305
Minimum DC Input Voltage (V)	113
Maximum DC Input Voltage (V)	430
Minimum Isolation Voltage	3750VAC
Line Regulation	0.3%(Typ)
Load Regulation	-1.5%(Typ)
Maximum Input Current (A)	0.25(Typ)
Input Frequency (Hz)	47 to 63
Tolerance (%)	±2(Typ)
Efficiency (%)	78(Typ)
Input Connector Type	PC Pins
Output Connector Type	PC Pins
Power Indicator	No
Ripple & Noise	50mV
Medical	No
Operating Temperature-Min	-20
Operating Temperature-Max	75
Packing Method	Tube
Pin Count	4
Terminal Form	Through Hole
Package Height	23.5
Package Length	52.5
Package Width	27.4
