1.14.100.503/0000

SKU: 5016

Manufacturer: RAFI GmbH & Co. KG

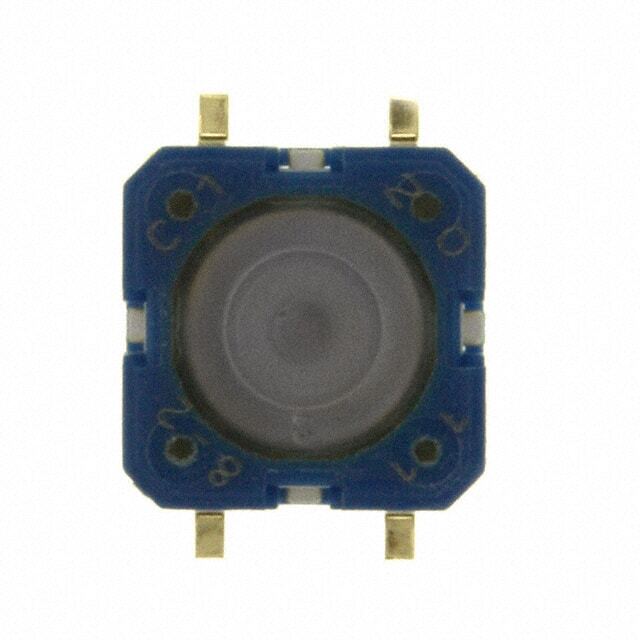

Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 42VDC 1VA 3.6N SMD T/R

Request Free Samples

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

RAFI GmbH & Co. KG 1.14.100.503/0000 is available at WIN SOURCE. Please review product page below for detailed information, including 1.14.100.503/0000 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1.14.100.503/0000 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Short Travel
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.1@42VDC
Maximum Power Rating (VA)	1@42VDC
Dielectric Strength	250VDC
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	1000000
Operating Force (N)	3.6
Actuator Length (mm)	1.33
Number of Rows	2
Row Spacing (mm)	9.8
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Terminal Length (mm)	1.3
Terminal Pitch (mm)	4.5
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	90
Packing Method	Tape and Reel
Body Length (mm)	8.4
Body Depth (mm)	8.4
Body Height (mm)	3.57
Length (mm)	8.4
Depth (mm)	11
Height (mm)	4.9
