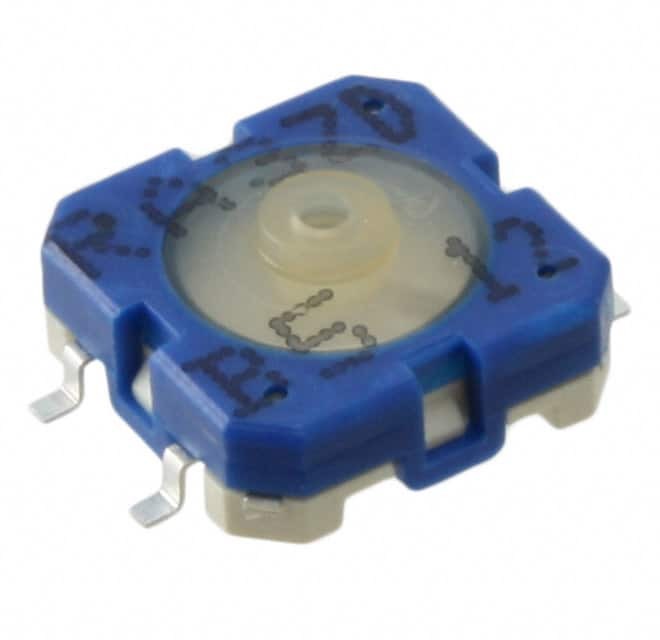

1.14.001.916/0000 RAFI GmbH & Co. KG

1.14.001.916/0000

SKU: 8484

Manufacturer: RAFI GmbH & Co. KG

Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 35VAC 35VDC 1VA 10N SMD T/R

Request Free Samples

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Short Travel
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switching Function	Momentary
Switch Configuration	N.O.
Current Rating-Max(A)	0.1@35VAC 35VDC
Maximum Power Rating (VA)	1
Electrical Life (Cycles)	1000000
Operating Force (N)	10
Actuator Length (mm)	1.11
Number of Rows	2
Row Spacing (mm)	13.55
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Terminal Length (mm)	1.5
Terminal Pitch (mm)	5
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	90
Body Length (mm)	12
Body Depth (mm)	12
Body Height (mm)	3.85
Length (mm)	12
Depth (mm)	15
Height (mm)	4.96
