7110-1511-050 Radiall

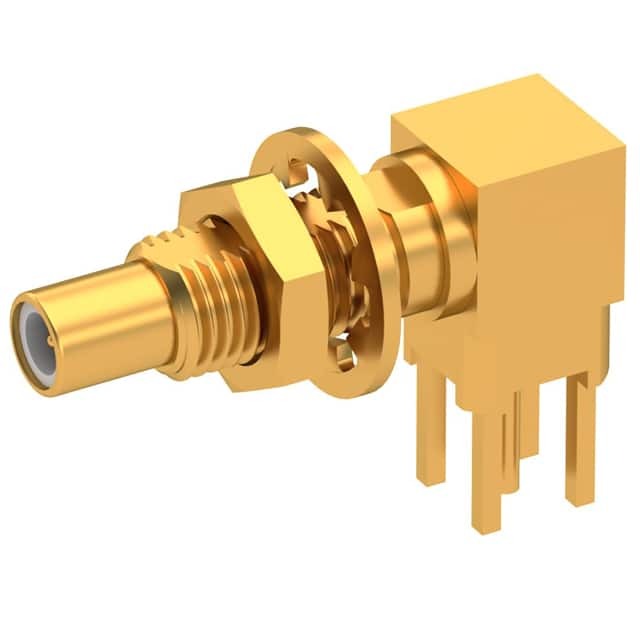

7110-1511-050

SKU: 51192

Manufacturer: Radiall

Conn SSMC 0Hz to 12.4GHz 50Ohm Solder RA Thru-Hole RCP Gold

Download sample

Request Free Samples

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	SSMC
Gender	RCP
Termination Method	Solder
Body Orientation	Right Angle
Contact Gender	M
Contact Plating	Gold
Operating Frequency (Hz)	0 to 12.4G
Voltage Rating-Max	250VAC
Impedance (Ohm)	50
Insulation Resistance (MOhm)	1000
Mating System	Threaded
Mating Cycle (Cycles)	500
Polarity	Reverse
Operating Temperature-Min	-65
Operating Temperature-Max	165
Length (mm)	14.48
Depth (mm)	4.76
Height (mm)	6.22
