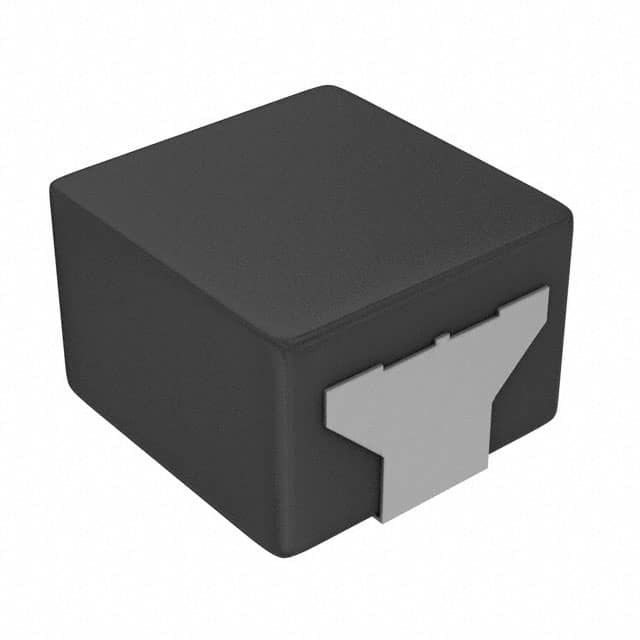

ETQ-P3M100KVP

SKU: 93906

Manufacturer: Panasonic

Power Choke Shielded Wirewound 10uH 20% 100KHz Metal 2.9A 0.1056Ohm DCR Automotive T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power Choke
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal
Inductance (H)	10u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.9
Maximum Saturation Current (A)	4.2
Maximum DC Resistance (Ohm)	0.1056
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	155
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.4
