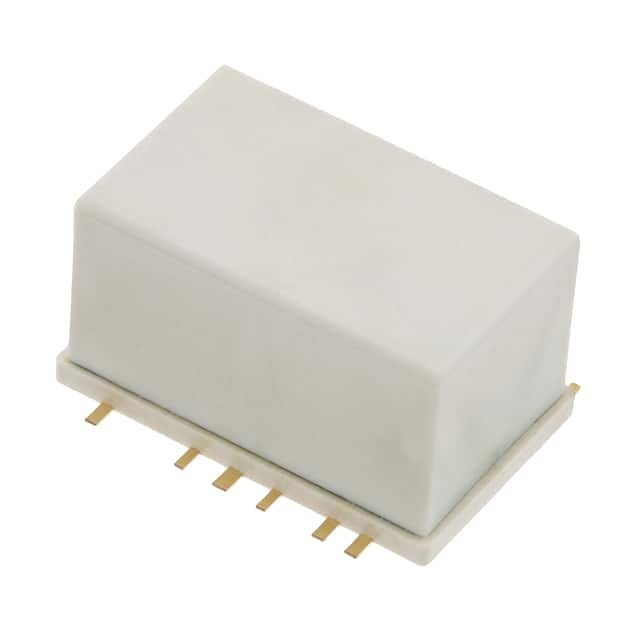

ARS14A4H

SKU: 116845

Manufacturer: Panasonic Electric Works

Signal Relay 4.5VDC 0.5A SPDT(14.6x11.2x8)mm SMD

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	4.5
Coil Current (mA)	44.4
Coil Resistance (Ohm)	101.3
Maximum Contact Resistance (mOhm)	100
Insulation Resistance (MOhm)	100
Maximum Pick-Up Voltage	3.38VDC
Minimum Dropout Voltage	0.45VDC
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	0.5
Operate Time (ms)	10
Release Time (ms)	6
Electrical Life (Operations)	300000
Mechanical Life (Operations)	5000000
Relay Construction	Non-Latching
Contact Body Material	Gold Plated
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	14
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	2
Length (mm)	14.6
Depth (mm)	11.2
