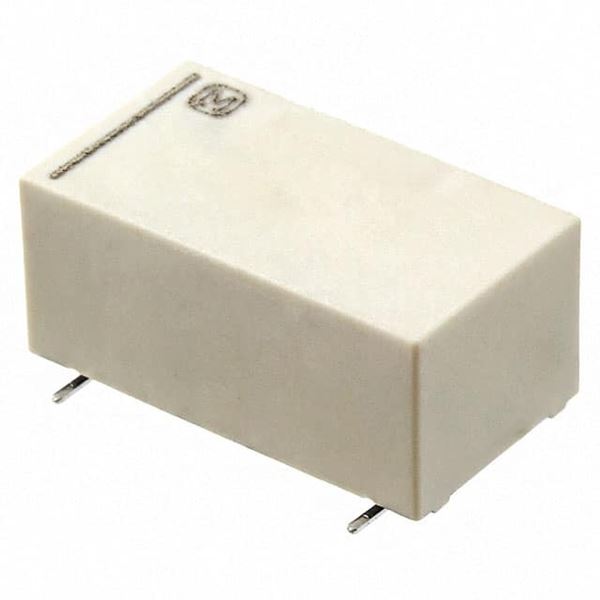

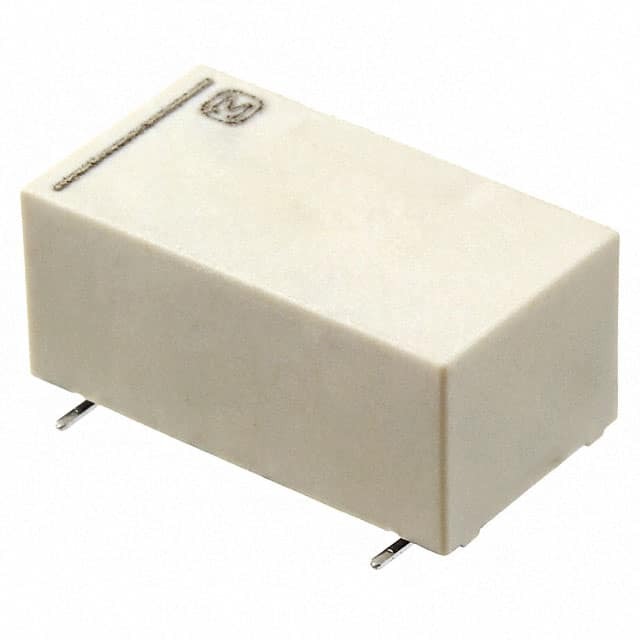

ARE13A4H

SKU: 17922

Manufacturer: Panasonic

Signal Relay 4.5VDC 0.5ADC SPDT(20.2x13.2x9.6)mm SMD

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.41.00.20
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	4.5
Coil Current (mA)	44.4
Coil Resistance (Ohm)	101
Maximum Contact Resistance (mOhm)	100
Insulation Resistance (MOhm)	100
Maximum Pick-Up Voltage	3.375VDC
Minimum Dropout Voltage	0.45VDC
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	0.5DC
Operate Time (ms)	10
Release Time (ms)	5
Electrical Life (Operations)	300000
Mechanical Life (Operations)	1000000
Relay Construction	Non-Latching
Contact Body Material	Gold Plated
Maximum Switching Power	10W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	9
Seal	Unsealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	5
Length (mm)	20.2
Depth (mm)	13.2
