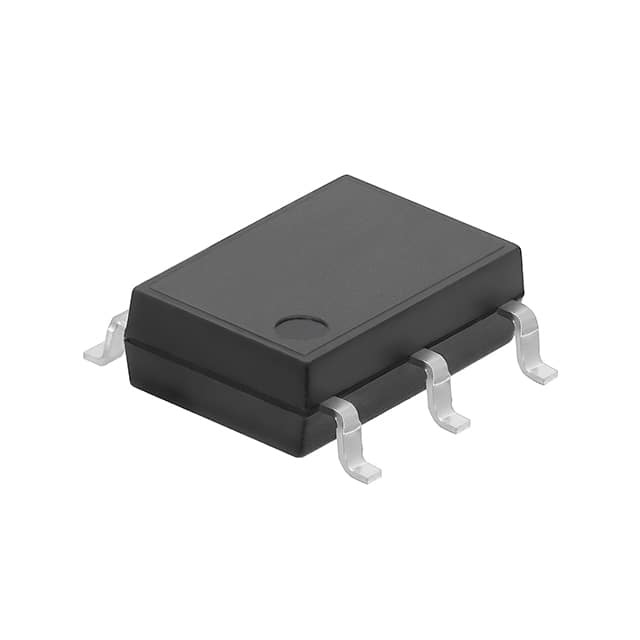

AQV252G3S

SKU: 60481

Manufacturer: Panasonic

PhotoMOS Relay SSR 3.3A 60V AC/DC-OUT 6-Pin SOP Tube

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
SVHC	Yes
Automotive	No
PPAP	No
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	60
Maximum Output Current (A)	3.3
Output Type	AC
Minimum Load Current (mA)	3300(Max)
I/O Isolation Voltage (V)	1500
Maximum Off-State Leakage Current (uA)	1
Maximum Power Dissipation (mW)	500
Maximum Turn-On Time (ms)	5
Maximum Turn-Off Time (ms)	0.5
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	SOP
Original Package	SOP
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.9
Package Length	6.3
Package Width	4.4
PCB changed	6
