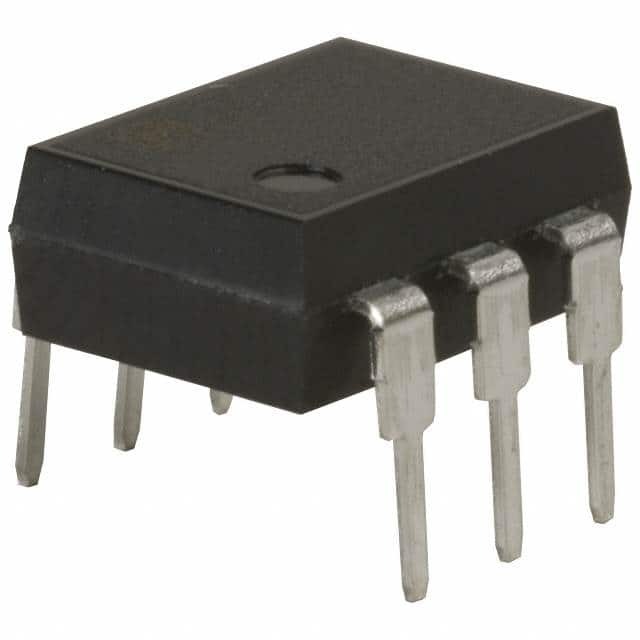

AQV252G3

SKU: 31997

Manufacturer: Panasonic

PhotoMOS Relay SSR AC/DC-IN 3.5A 60V AC/DC-OUT 6-Pin DIP Tube

3040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Maximum Output Voltage (V)	60
Maximum Output Current (A)	3.5
Output Type	DC
I/O Isolation Voltage (V)	1500(RMS)
Maximum Power Dissipation (mW)	650
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	DIP
Pin Count	6
Terminal Form	Through Hole
Package Height	3.4
Package Length	8.8
Package Width	6.4
PCB changed	6
