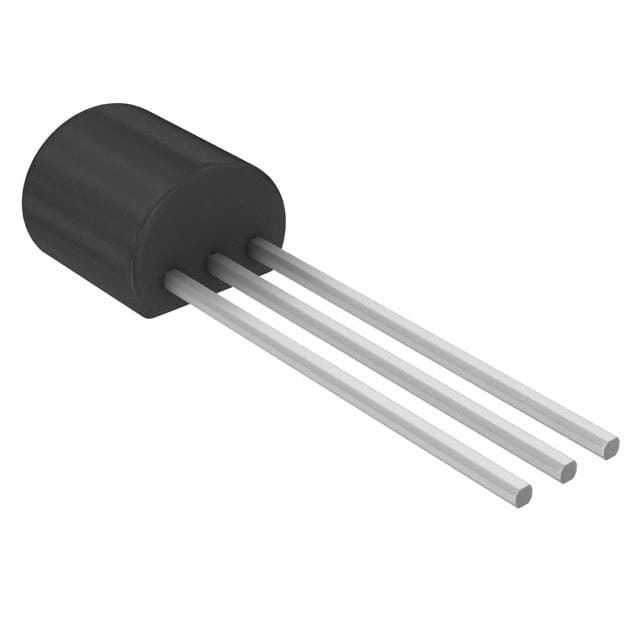

TL431CLP

SKU: 121159

Manufacturer: onsemi

V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bag

109360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Reference Type	Adjustable
Topology	Shunt
Initial Accuracy	2.2%
Maximum Temperature Coefficient	50ppm/°C(Typ)
Output Voltage (V)	2.495 to 36
Maximum Input Voltage (V)	37
Maximum Output Current (mA)	100
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Bag
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
