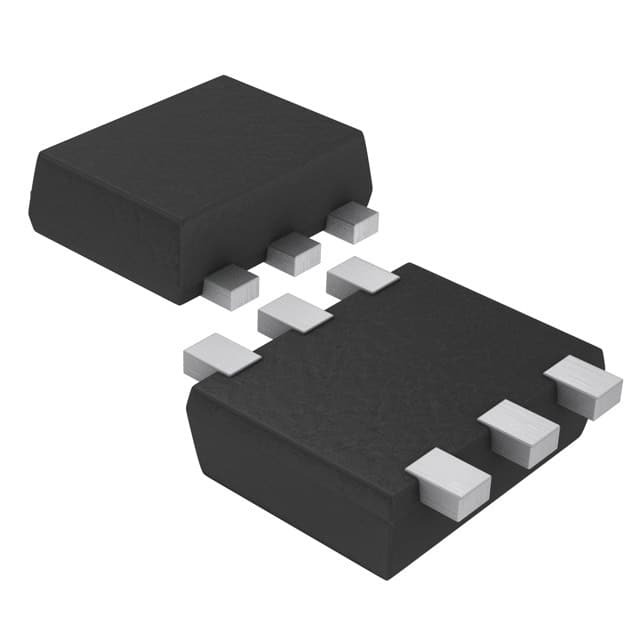

SCH2825-TL-E

SKU: 91930

Manufacturer: onsemi

Trans MOSFET N-CH Si 30V 1.6A 6-Pin Case SCH T/R

5180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Dual Drain
Channel Mode	Depletion
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	1.6
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	180@10V
Typical Gate Charge @ Vgs (nC)	2@10V
Typical Gate Charge @ 10V (nC)	2
Typical Input Capacitance @ Vds (pF)	88@10V
Maximum Power Dissipation (mW)	600
Typical Fall Time (ns)	4
Typical Rise Time (ns)	3.5
Typical Turn-Off Delay Time (ns)	10.6
Typical Turn-On Delay Time (ns)	3.4
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	Case SCH
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.56
Package Length	1.6
Package Width	1.5
