PZTA14

SKU: 56673

Manufacturer: onsemi

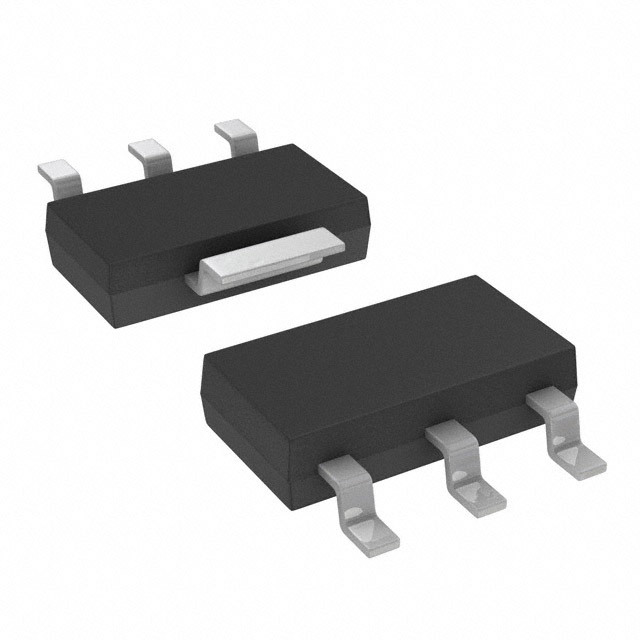

Trans Darlington NPN 30V 1.2A 1000mW 4-Pin(3+Tab) SOT-223 T/R

11790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	30
Collector Base Voltage-Max (V)	30
Maximum Emitter Base Voltage (V)	10
Maximum Continuous DC Collector Current (A)	1.2
Maximum Collector Cut-Off Current (uA)	0.1
Typical Current Gain Bandwidth (MHz)	125(Min)
Maximum Collector-Emitter Saturation Voltage (V)	1.5@0.1mA@100mA
Minimum DC Current Gain	10000@10mA@5V
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-223
Terminal Form	Surface Mount
Package Height	1.69(Max)
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
