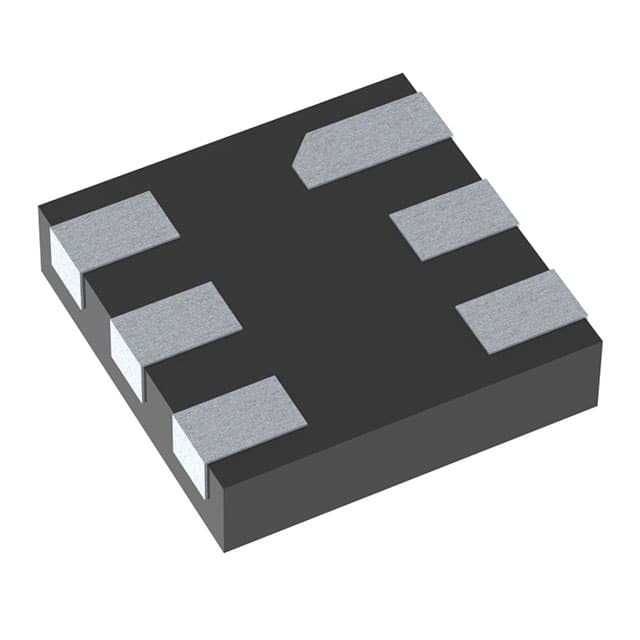

NCP702MX28TCG

SKU: 136980

Manufacturer: onsemi

LDO Regulator Pos 2.8V 0.2A 6-Pin XDFN T/R

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	2.8
Maximum Output Current (A)	0.2
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.2@200mA
Line Regulation	440uV/V(Typ)
Load Regulation	13uV/mA(Typ)
Maximum Quiescent Current (mA)	0.016
Junction to Ambient	149°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	XDFN
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.4(Max)
Package Length	1.5
Package Width	1.5
